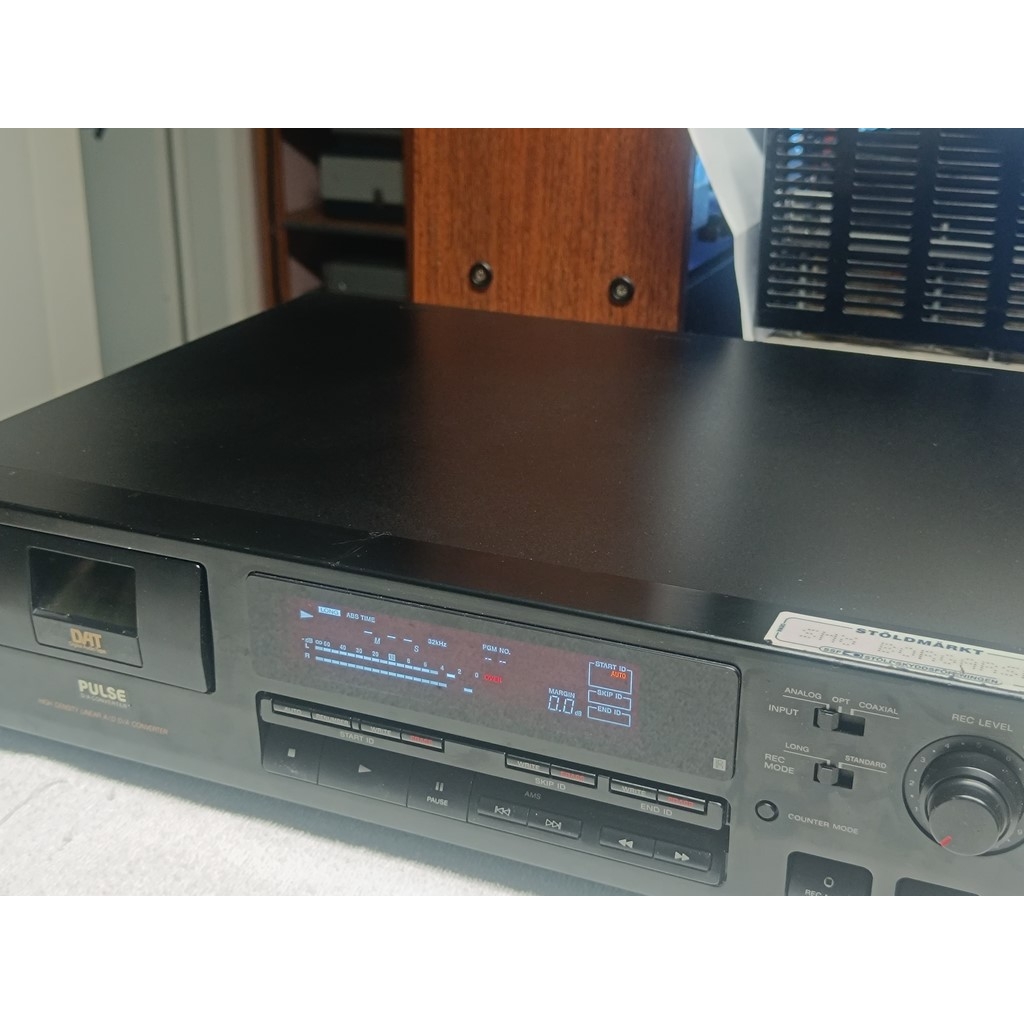

| Type | DAT deck |
| Recording system | Rotary head system |
| Frequency characteristic | 2 Hz to 22 kHz ± 0.5 dB |
| Total harmonic distortion factor | 0.005% or less (EIAJ, Line Input) |
| Signal-to-noise ratio | 90 dB or More (EIAJ, Line Input) |
| Dynamic range | 90 dB or More (EIAJ, Line Input) |
| Wow and flutter | Below the limit of measurement (± 0.001% Wpeak) (EIAJ) |
| Input terminal | Line : 1 system Digital coaxial : 1 system Digital Light : 1 system |
| Output terminal | Line : 1 system Digital Light : 1 system Headphone : 1 system (stereo standard jack) |
| Pwer | 100 VAC, 50Hz/60Hz |
| Power consumption | 26W |
| External dimensions | Width 430x Height 110x Depth 350 mm |
| Weight | Approx. 5 kg |
| Attachment | Wireless Remote Control RM-D690 |
