Description

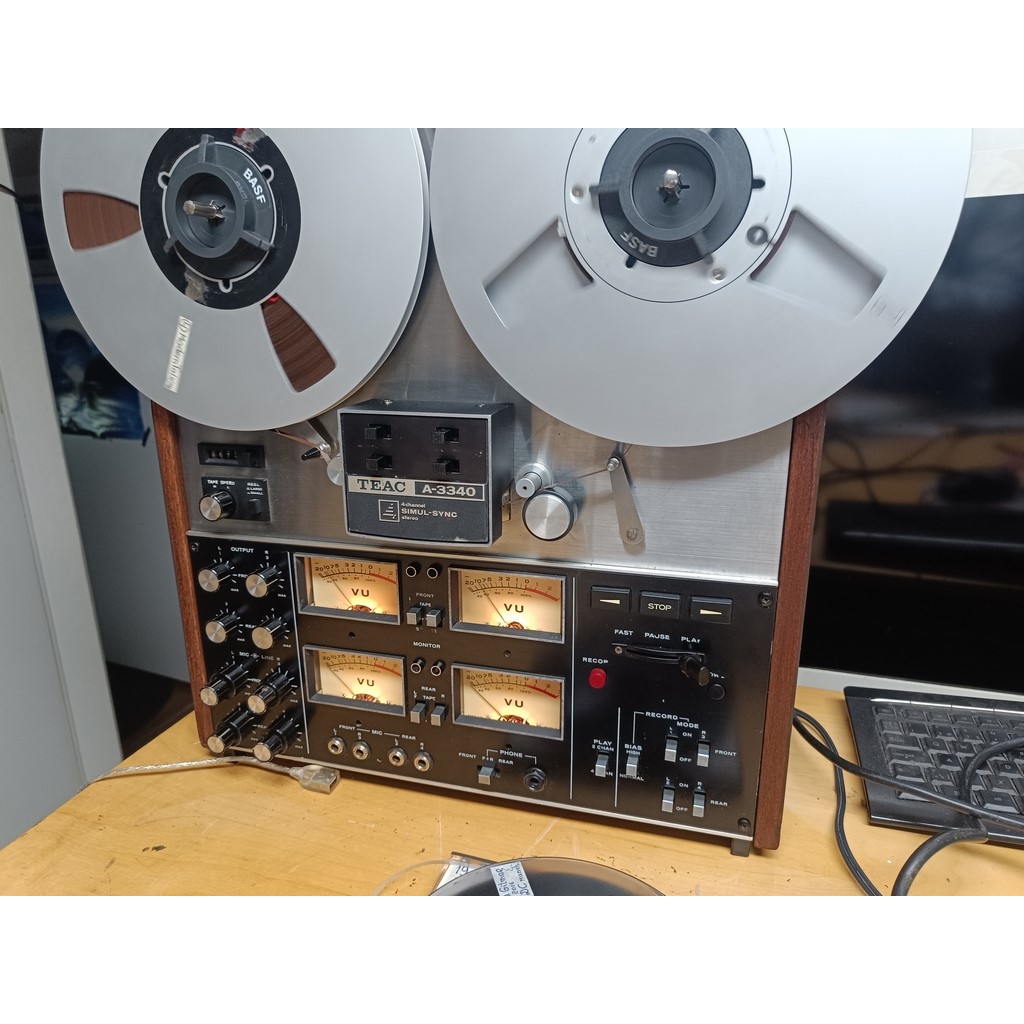

The TEAC A-3340S is a semi-professional tape deck capable of 4-channel, stereophonic and monophonic recording and playback, with Simul-Sync function, and offering operating speeds of 15 ips and 7.5 ips

The basic design of the A-3340 is highly similar to that of the A-3340S, therefore service information may be applied to both models.

Specifications

Track system: 4-track, 4-channel, stereo/monaural/multi channel system

Heads: 1 x erase, 1 x record, 1 x playback

Motor: 2 x reel, 1 x capstan

Reel size: up to 10.5 inch reel

Tape speeds: 7 ¹⁄₂  15 ips

Wow and flutter: 0.04% (15 ips)

Frequency response: 25Hz to 24kHz (15 ips)

Signal to Noise Ratio: 55dB

Total harmonic distortion: 1%

Input: 100mV (line), 0.25mV (mic)

Output: 0.775V (line)

Dimensions: 522 x 440 x 170mm

Weight: 22.5kg
